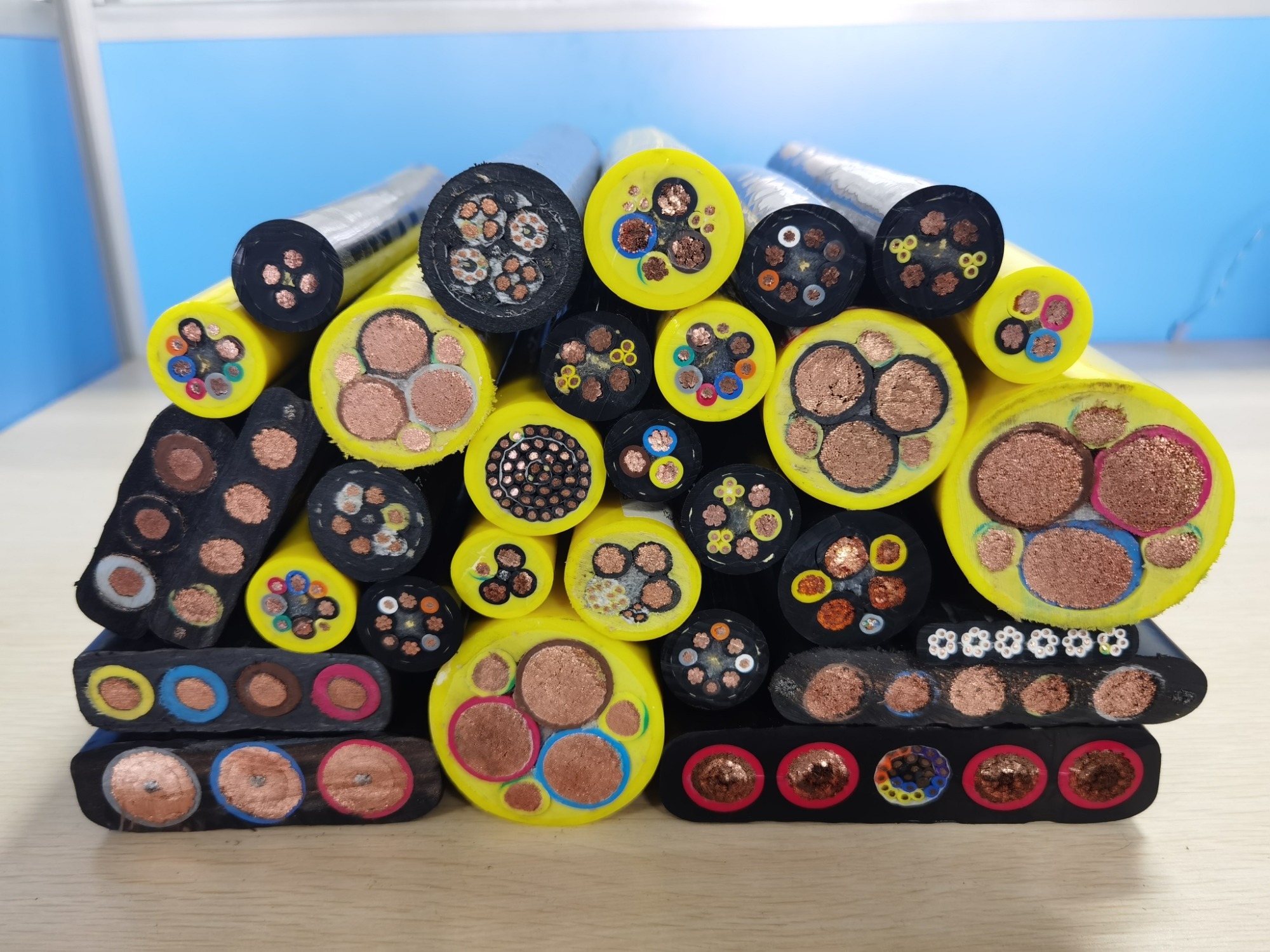

Cable Structure | ||||
Part | 3*185 | 2*50/2 | 12*1.5 | |
Conductor | Material | Annealed copper wires | Annealed copper wires | Annealed copper wires |
Structure | 1472/0.4±0.004 | 509/0.25±0.004 | 97/0.14±0.004 | |
Strand OD. | 19.8 | 7.2 | 1.6 | |
Shield | / | / | / | |
Thickness (mm) | 2 | 1.2 | 0.55 | |
Min. thickness | 1.6 | 0.98 | 0.45 | |
OD. (mm) | 23.8±0.8 | 9.6±0.5 | 2.7±0.1 | |
Colour | Black 1~3 | Yellow/Green1-2 | Yellow 1~12 | |
Shield | tinned copper braid | / | / | |
cabling | Fliier | PP Rope | ||
Type of shielding(wrapping) | 12*1.5 tinned copper braid shield | |||
Inner Jacket | Material | Rubber compound based on NBR | ||
Colour | Yellow | |||
Overall diameter | 57.7±1.5 | |||
Total Shield | Shield | / | ||
Outer Jacket | Material | PUR | ||
Colour | Yellow | |||
Thickness (mm) | 3.4 | |||
Min. thickness | 2.79 | |||
Overall diameter | 64.5±1.5 |
