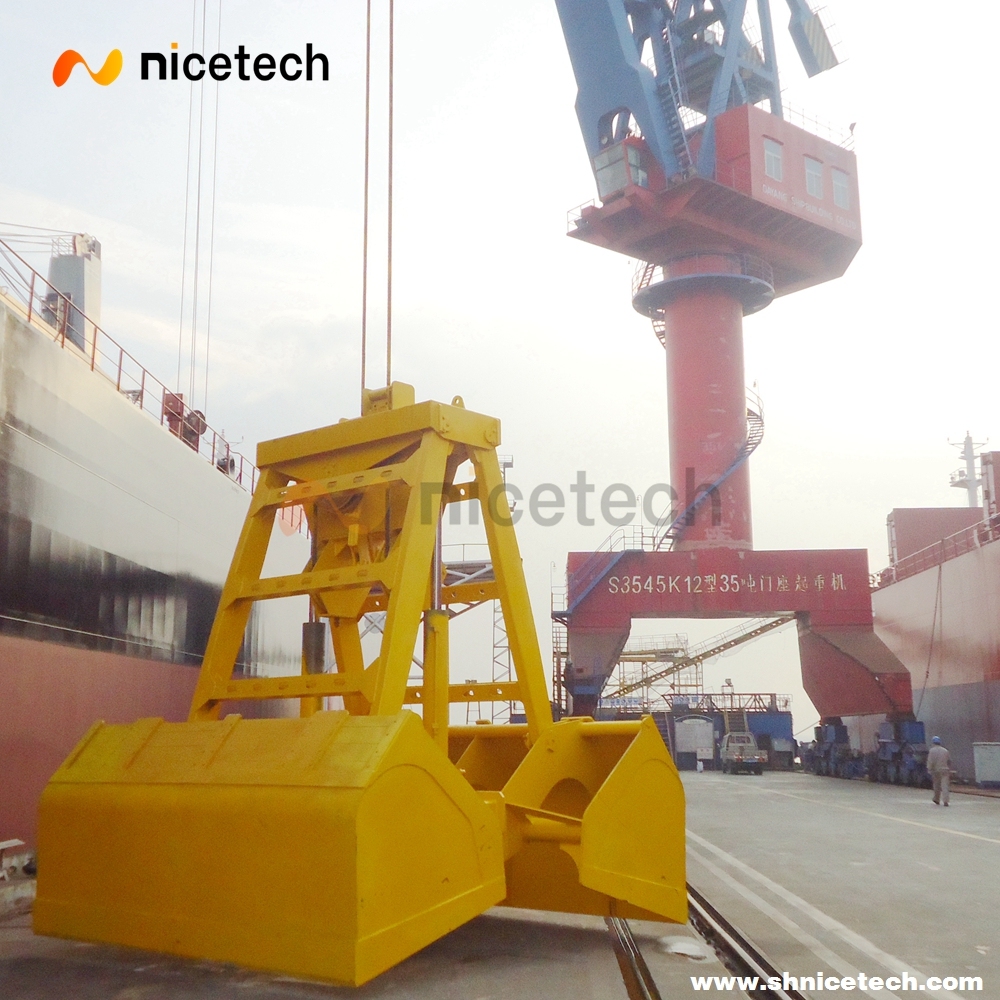

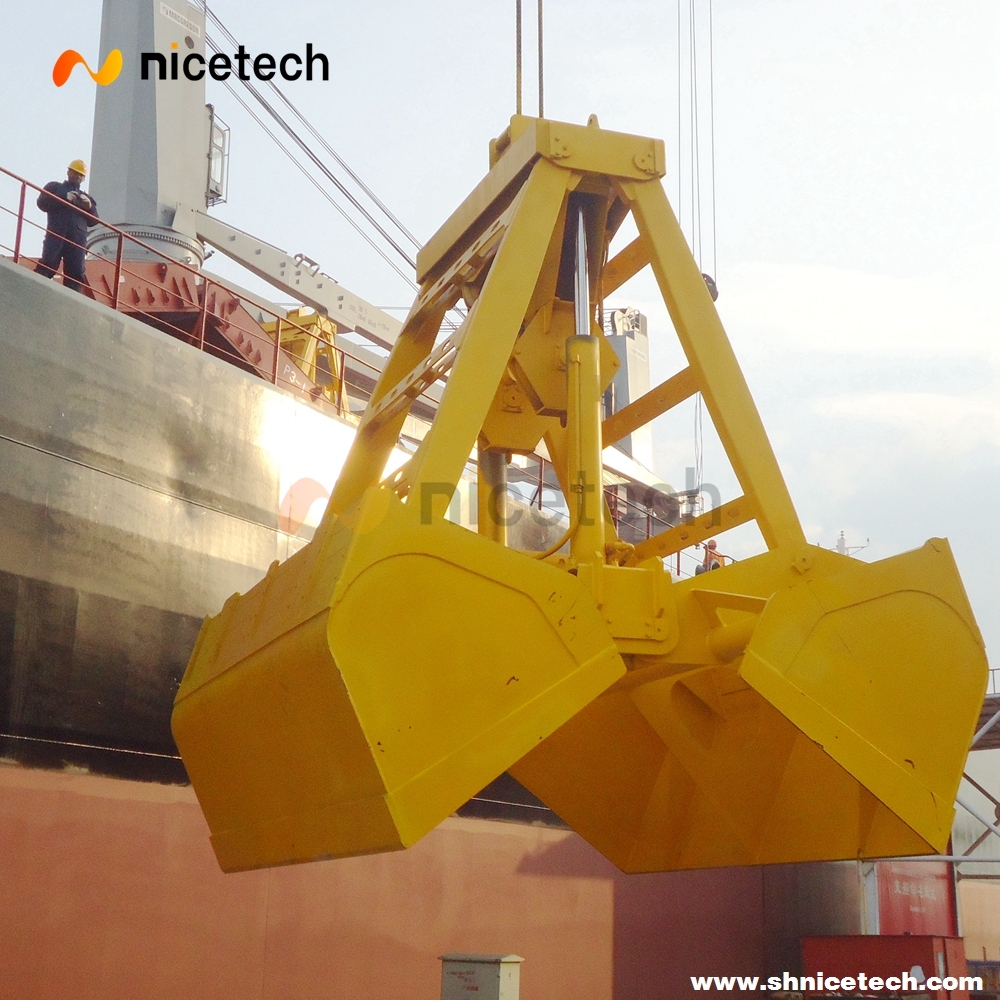

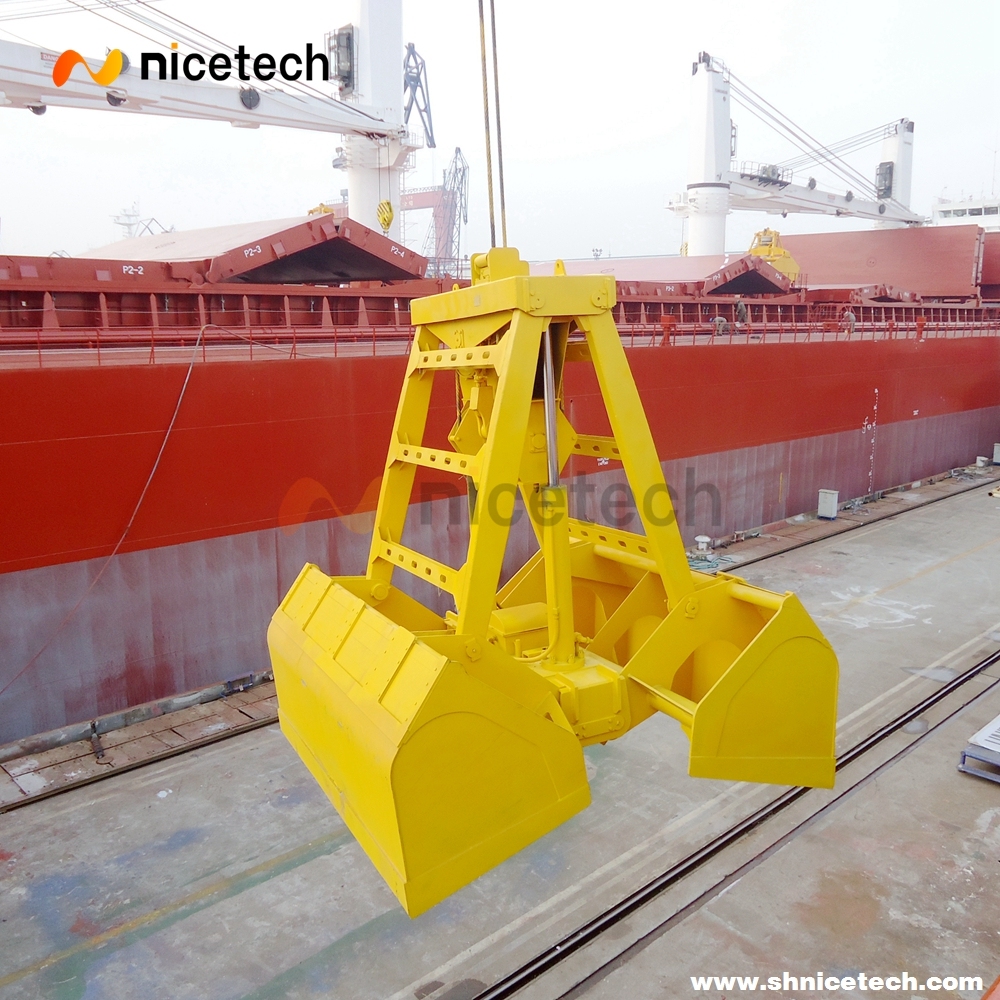

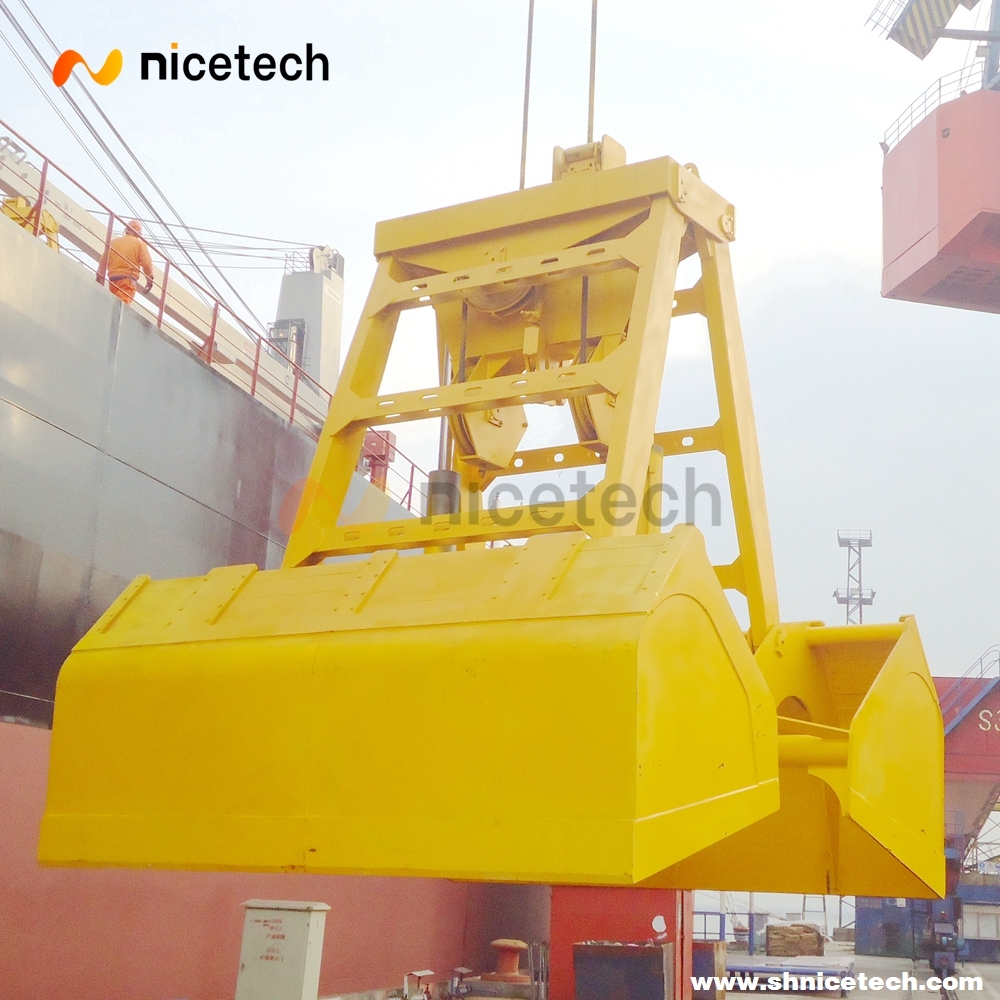

12 CBM remote control grab bucket

remote control grab is widly used on board,or port for bulk cargo unlaod and discharge.it is sitable for all kinds crane.
Description
WIRELESS REMOTE CONTROL GRAB
wireless remote control grab is a kind of bulk grab that can be applied to the single cable grab in the air. It is usually used with a single-hook crane, which solves the difficulty of traditional single cable grabs with low working efficiency and large operation intensity. For single-hook type cranes and ship cranes, its work is reliable and easy to operate. The grapple comes with a closed hydraulic system. The wireless remote control device is used to realize the opening and closing of the grab.
It not only has the characteristics of simple structure and reliable use of the rope grab, but also has the characteristics of high production efficiency of the power grab. It is widely used in ships, ports, stations, factories, mines and other industries. It is an ideal tool for handling bulk cargoes such as coal, mineral powder, bulk chemical fertilizers, and yellow sand. The wireless remote control grab can work under harsh environment such as high temperature, cold, dust, rain, etc. and its performance is not affected.
The remote control distance can reach more than 100 meters. The grab uses high-performance battery. After each charge, the grab can be Continuous operation for more than 100 hours. Connection to the crane: The balancer of the grab can be used directly on the hook of the crane.
TYPE SWL (t) Dead
weight
(Kg)
Volu
me
(m3)
Dia. Of
wire rope
(mm)
Pulley Overall size锛坢m锛?
Dia Rate A B C D E F G
RNT12.5-1.8-4300 12.5 4760 4.3 24 450 3 3080 2980 2240 2920 2420 6870 6990
RNT16.0-1.8-5400 16.0 6180 5.4 26 500 3 3360 3220 2500 3180 2500 7430 7570
RNT20.0-1.8-6700 20.0 7830 6.7 28 560 3 3600 3480 2640 3400 2700 7920 8050
RNT25.0-1.8-8500 25.0 9630 8.5 32 630 3 4060 3940 2880 3710 3000 8750 8860
RNT32.0-1.8-11500 32.0 11140 11.5 36 710 3 4620 4240 3310 4160 3260 10340 10750
RNT12.5-1.8/2.6-4300/2900 16.0 4880 4.3/2.9 24 450 3 3080 2980 2240 2920 2420 6870 6990
RNT16.0-1.8/2.6-5400/3700 16.0 6280 5.4/3.7 26 500 3 3360 3220 2500 3180 2500 7430 7570
RNT20.0-1.8/2.6-6700/4600 20.0 7920 6.7/4.6 28 560 3 3600 3480 2640 3400 2700 7920 8050
RNT25.0-1.8/2.6-8500/5700 25.0 9700 8.5/5.7 32 630 3 4060 3940 2880 3710 3000 8750 8860
RNT32.0-1.8/2.6-11500/8000 32.0 11200 11.5/8.0 36 710 3 4620 4240 3310 4160 3260 10340 10750
RNT20.0-1.0/1.8-10000/6600 20.0 8120 10.0/6.6 28 560 3 3910 3770 2950 3920 3000 8220 8370
RNT25.0-1.8/1.8-12000/8300 25.0 9960 12.0/8.3 32 630 3 4300 4160 3140 4120 3300 8990 9020
