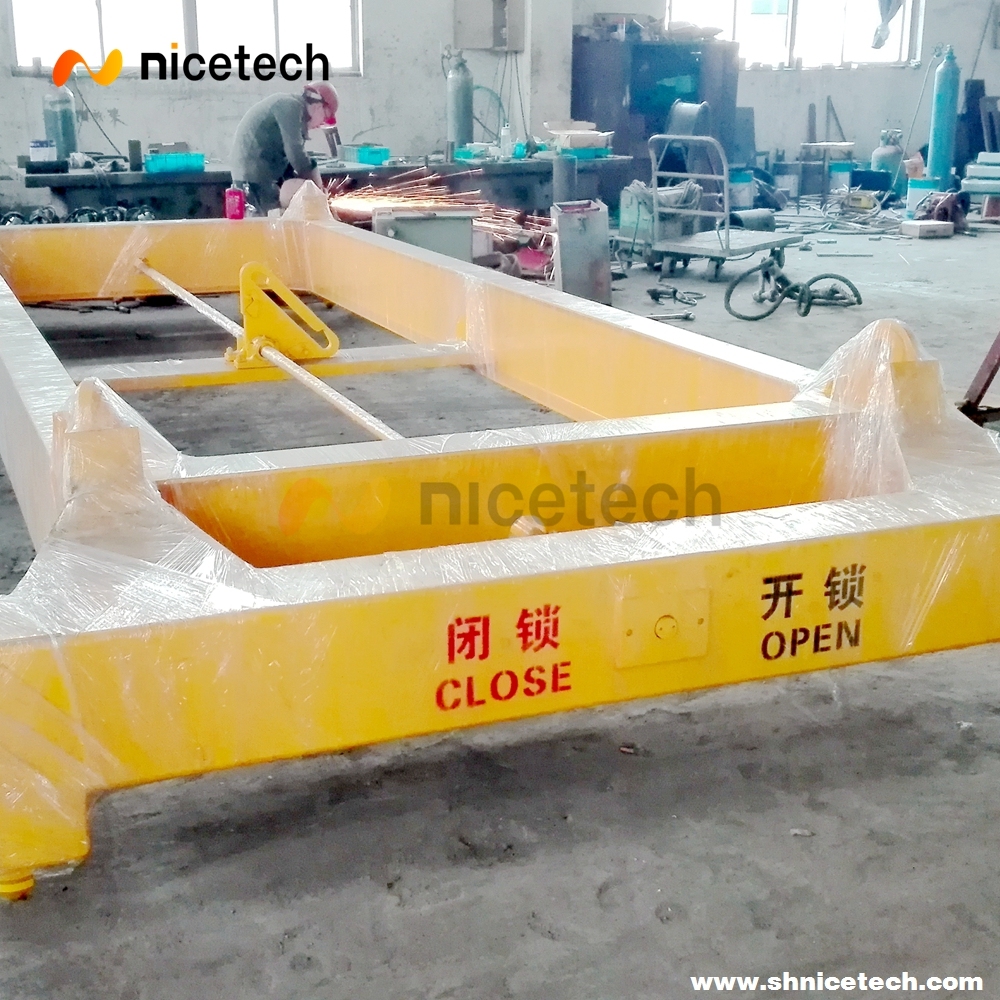

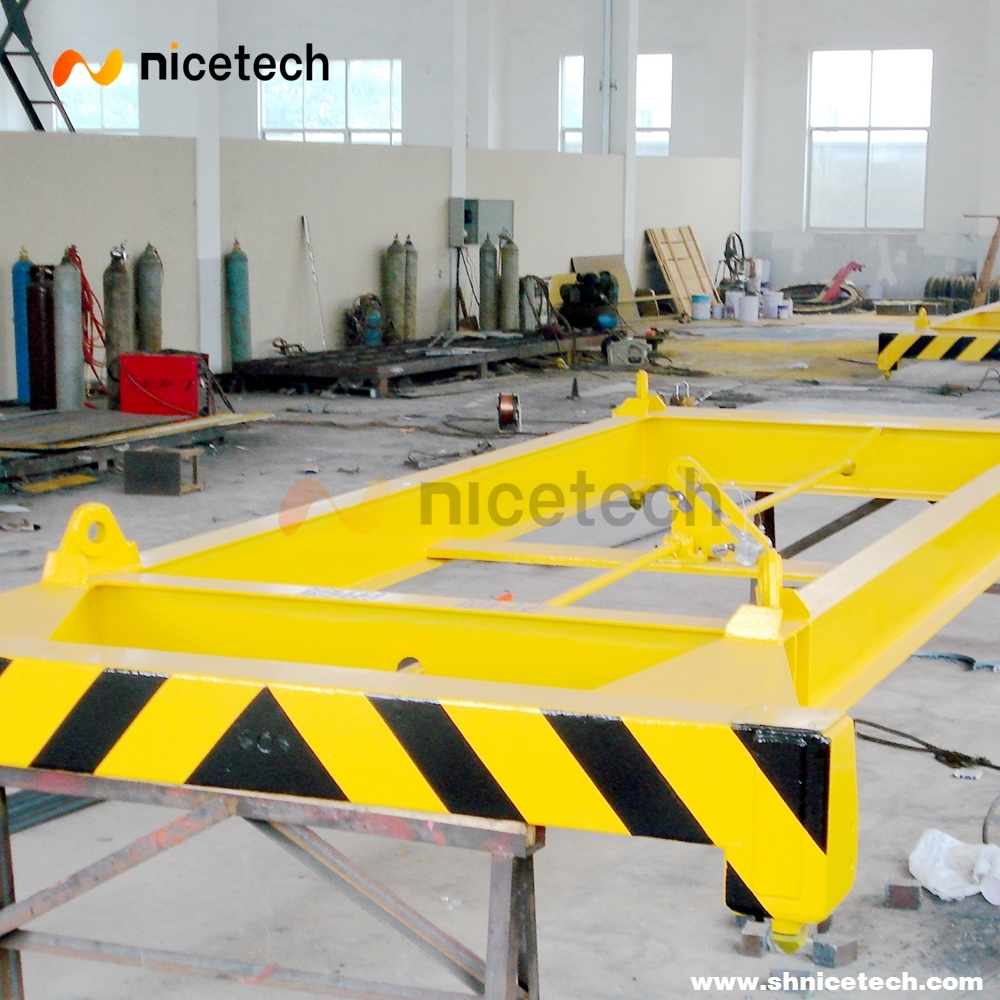

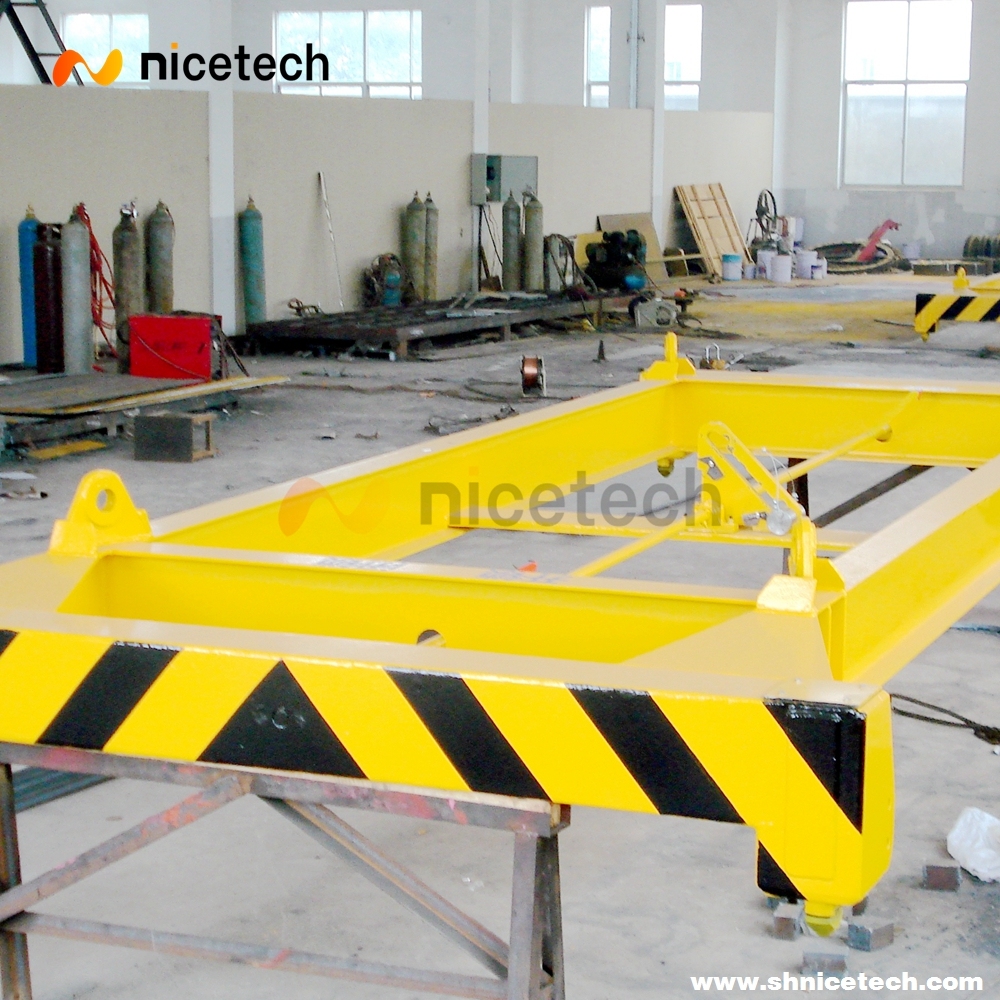

20 FT Semi Automatic container spreader

20FT semi automatic container spreader us use to load or unload 20FT container on port or board.it is suitable for single hook crane, and easy operation.
Description
20FT SEMI AUTOMATIC CONTAINER SPREADER
Semi automatic container spreader is fixed on crane by hook. the twisting block is controlled by lifting wire rope.There is no need for crane operator to articulated/decoupling. Easy installation and save more transformation time from the hook to container, can work without electric and no need to update crane control circuit.










For operation with ISO standard 20 containers
Rated lifting load            35T
Self-weight 2.2T
Allowable load eccentricity ±10%
Spring stroke 100mm
Ambient  temperature -20℃+45℃
Twistlockmode ISO floating twistlock, driven by a automatic spring
Flippers device No power, fixed flippers.
Application Portal crane, gantry crane, crane in plant.
